5F Series

5F Series light duty quarter turn fastener studs are available in cross recess or slotted head styles.

View the tables below, select your preferred head style and click on a part number for more information.

N.B When selecting a quarter turn fastener assembly it is essential to know the grip range of your application.

Panel (P) + Frame (F) = Grip (G)

Downloads:

Selecting the Fastener

P = Panel Thickness

F = Frame Thickness

G = Total thickness/Grip (P + F) as well as possible gaskets, paint thickness or gaps. This dimension gives the stud length number in the corresponding series tables.

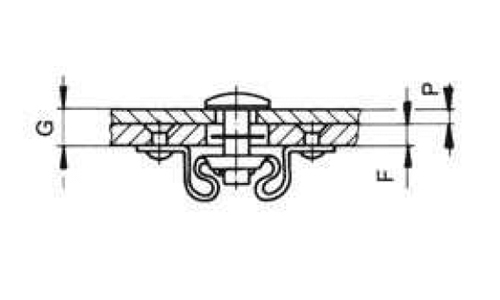

5F series assembly with receptacle

5f(with receptacle).jpg

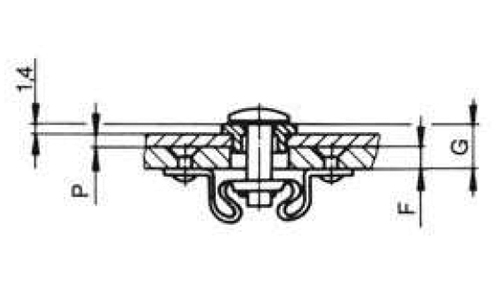

5F series assembly with grommet

5f_with grommet.jpg

5F Series Features

  • Max. tensile strength 670 N, working load 450 N
  • Plastic washer stud assembly to protect decorative surfaces
  • Spring loaded receptacle
  • Slotted and Cross Recess stud head style options

Scroll down the page for alternative head styles

Head StylePart NumberReceptacleGrip Range (mm)MaterialFinish
Slotted Recess HeadV5S5-1AGV
Type 1
0.50-0.90Steel/Zinc PlatedCrVI-free passivated

V5S5-2AGV
Type 1
0.90-1.30Steel/Zinc PlatedCrVI-free passivated

V5S5-3AGV
Type 1
1.30-1.65Steel/Zinc PlatedCrVI-free passivated

V5S5-4AGV
Type 1
1.65-2.05Steel/Zinc PlatedCrVI-free passivated

V5S5-5AGV
Type 1
2.05-2.40Steel/Zinc PlatedCrVI-free passivated

V5S5-6AGV
Type 1
2.40-2.80Steel/Zinc PlatedCrVI-free passivated
V5S5-7AGV
Type 1
2.80-3.20Steel/Zinc PlatedCrVI-free passivated

V5S5-8AGV
Type 1
3.20-3.55Steel/Zinc PlatedCrVI-free passivated
V5S5-9AGV
Type 1
3.55-3.95Steel/Zinc PlatedCrVI-free passivated
V5S5-10AGV
Type 1
3.95-4.30Steel/Zinc PlatedCrVI-free passivated
V5S5-11AGV
Type 1
4.30-4.70Steel/Zinc PlatedCrVI-free passivated
V5S5-12AGV
Type 1
4.70-5.10Steel/Zinc PlatedCrVI-free passivated
V5S5-13AGV
Type 1
5.10-5.45Steel/Zinc PlatedCrVI-free passivated
V5S5-14AGV
Type 1
5.45-5.85Steel/Zinc PlatedCrVI-free passivated
V5S5-15AGV
Type 1
5.85-6.20Steel/Zinc PlatedCrVI-free passivated
V5S5-16AGV
Type 1
6.20-6.60Steel/Zinc PlatedCrVI-free passivated
V5S5-17AGV
Type 1
6.60-7.00Steel/Zinc PlatedCrVI-free passivated
V5S5-18AGV
Type 1
7.00-7.35Steel/Zinc PlatedCrVI-free passivated
V5S5-19AGV
Type 1
7.35-7.75Steel/Zinc PlatedCrVI-free passivated
V5S5-20AGV
Type 1
7.75-8.15Steel/Zinc PlatedCrVI-free passivated
V5S5-21AGVType 18.15-8.50Steel/Zinc PlatedCrVI-free passivated

Slotted Recess Head


Longer stud lengths are available, please contact the office for more information

We also stock Stainless Steel studs in this head style.

Stainless Steel Slotted Recess studs use the prefix '5S27'.

When requesting a quote, determine your Grip Range from the table above to complete your part number.

For example, a Grip Range of 1.65-2.05 mm = 5S27-4AGV

Head StylePart NumberReceptacleGrip Range (mm)MaterialFinish
Cross Recess HeadV5S21-1AGV
Type 10.50-0.90Steel/Zinc PlatedCrVI-free passivated
 V5S21-2AGV
Type 10.90-1.30Steel/Zinc PlatedCrVI-free passivated
 V5S21-3AGV
Type 11.30-1.65Steel/Zinc PlatedCrVI-free passivated
 V5S21-4AGV
Type 11.65-2.05Steel/Zinc PlatedCrVI-free passivated
 V5S21-5AGV
Type 12.05-2.40Steel/Zinc PlatedCrVI-free passivated
 V5S21-6AGV
Type 12.40-2.80Steel/Zinc PlatedCrVI-free passivated
 V5S21-7AGV
Type 12.80-3.20Steel/Zinc PlatedCrVI-free passivated
 V5S21-8AGV
Type 13.20-3.55Steel/Zinc PlatedCrVI-free passivated
 V5S21-9AGV
Type 13.55-3.95Steel/Zinc PlatedCrVI-free passivated
 V5S21-10AGV
Type 13.95-4.30Steel/Zinc PlatedCrVI-free passivated
 V5S21-11AGV
Type 14.30-4.70Steel/Zinc PlatedCrVI-free passivated
 V5S21-12AGV
Type 14.70-5.10Steel/Zinc PlatedCrVI-free passivated
 V5S21-13AGV
Type 15.10-5.45Steel/Zinc PlatedCrVI-free passivated
 V5S21-14AGV
Type 15.45-5.85Steel/Zinc PlatedCrVI-free passivated
 V5S21-15AGV
Type 15.85-6.20Steel/Zinc PlatedCrVI-free passivated
 V5S21-16AGV
Type 16.20-6.60Steel/Zinc PlatedCrVI-free passivated
 V5S21-17AGV
Type 16.60-7.00Steel/Zinc PlatedCrVI-free passivated
 V5S21-18AGV
Type 17.00-7.35Steel/Zinc PlatedCrVI-free passivated
 V5S21-19AGV
Type 17.35-7.75Steel/Zinc PlatedCrVI-free passivated
 V5S21-20AGV
Type 17.75-8.15Steel/Zinc PlatedCrVI-free passivated
 V5S21-21AGV
Type 18.15-8.50Steel/Zinc PlatedCrVI-free passivated

Cross Recess Head


Longer stud lengths are available, please contact the office for more information

We also stock Stainless Steel studs in this head style.

Stainless Steel Cross Recess studs use the prefix '5S15'.

When requesting a quote, determine your Grip Range from the table above to complete your part number.

For example, a Grip Range of 1.65-2.05 mm = 5S15-4AGV

Return to Quarter Turn Fastener selection
