AeroLoc 200-1100 Series

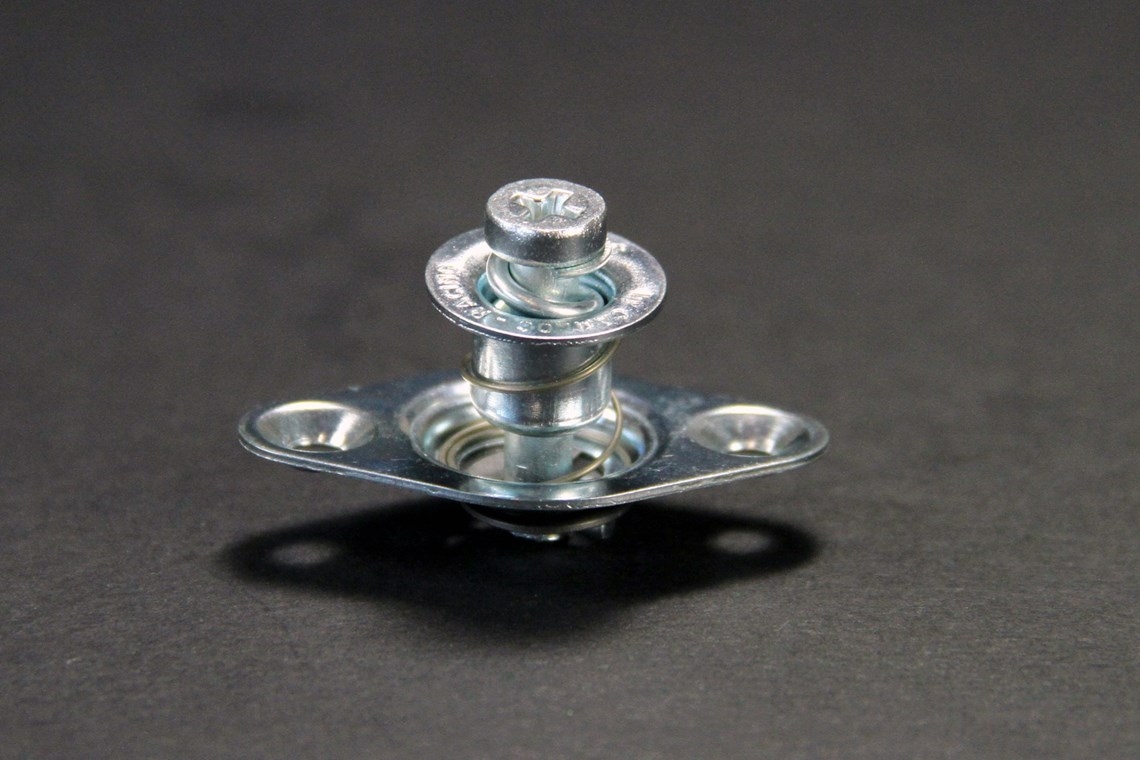

AeroLoc 200-1100 Series have a cross-recess head style with countersunk hole fixings.

AeroLoc quarter turn fasteners are grip range sensitive. To select the required stud size you will need to establish the Grip. This is the panel and frame thicknesses combined: P + F = G (see Fig 1)

Once you have determined your grip size (G), select a stud part number from Table 1 below.

Specifying your AeroLoc

1. Refer to Table 1 and select the stud dash number for your grip (G).

2. Configure assembly part number

AeroLoc 200-1100 Series
AeroLoc 200-1100 Series
200-1100 series.jpg

Dimensional Drawings

standard grip range.jpg

Table 1: AeroLoc standard grip range

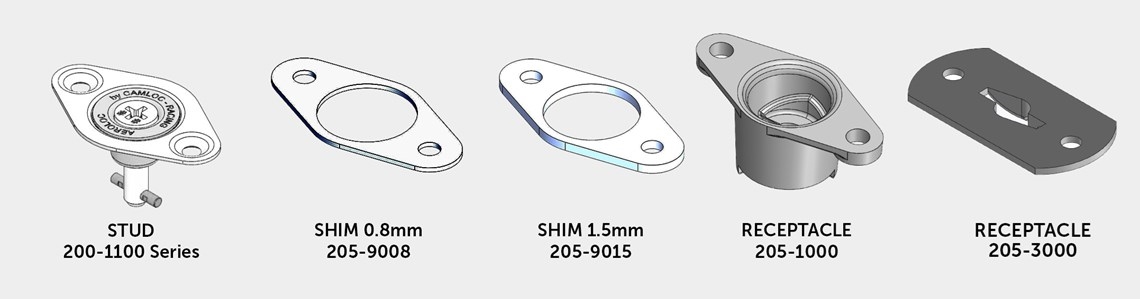

Stud NumberGRIP SHIMRECEPTACLE
 MinMax
200-11073.55
(0.14)		4.30
(0.17)		205-9015205-1000
200-11074.30
(0.17)		5.10
(0.20)		205-9008205-1000
200-11075.10
(0.20)		5.85
(0.23)		-205-1000
200-11085.85
(0.23)		6.60
(0.26)		-205-1000
200-11096.60
(0.26)		7.30
(0.29)		-205-1000
200-11107.30
(0.29)		8.15
(0.32)		-205-1000
200-11118.15
(0.32)		8.90
(0.35)		-205-1000
200-11128.90
(0.35)		9.65
(0.38)		-205-1000
200-11139.65
(0.38)		10.40
(0.41)		-205-1000
200-111410.40
(0.41)		11.20
(0.44)		-205-1000
200-111511.20
(0.44)		11.95
(0.47)		-205-1000

Dimensions MM (IN)
