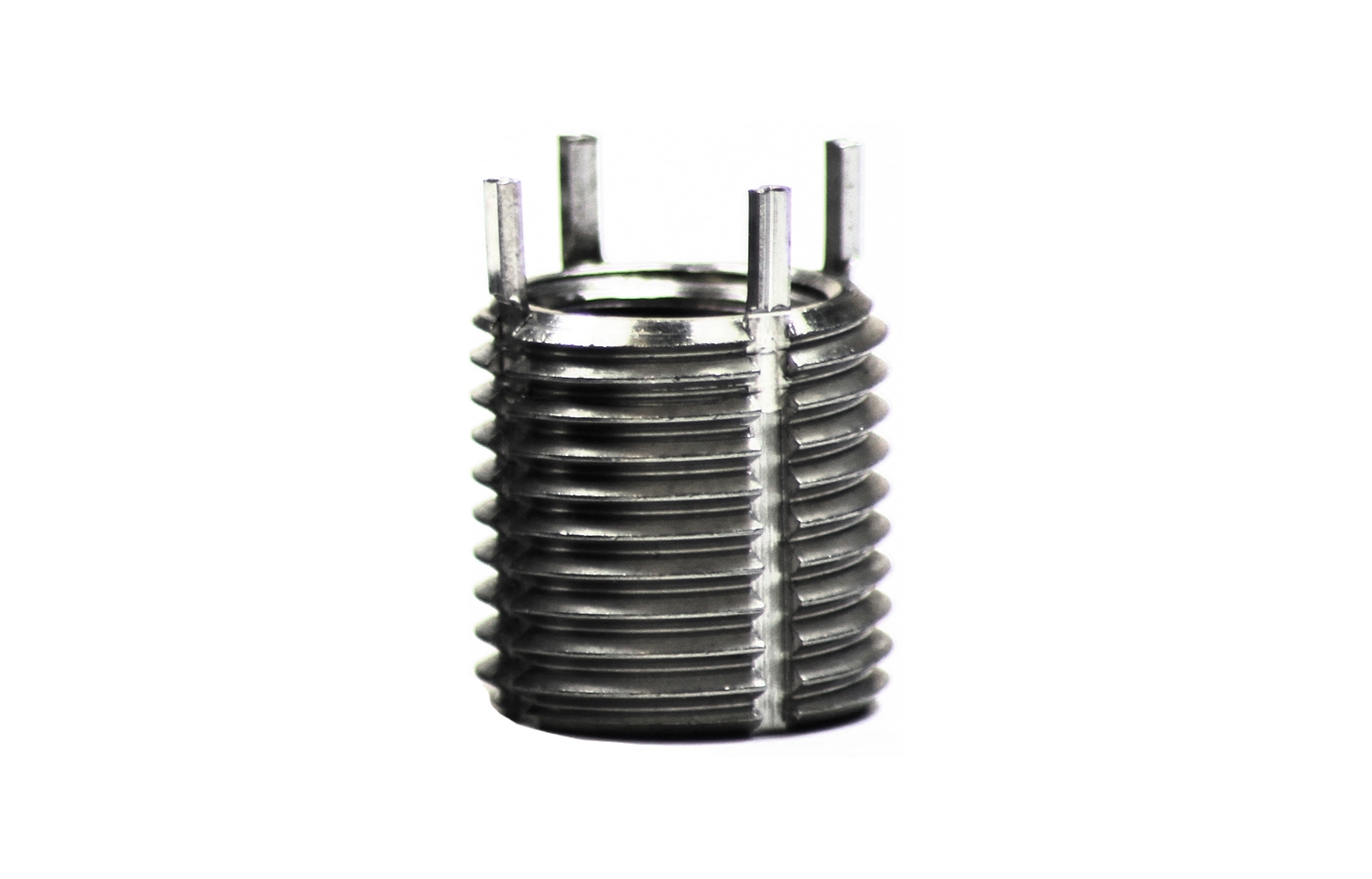

KNM8x1.25 Metric Series Keensert
KNM8x1.25
See PDF Document in 'Download' window for available sizes and Installation Instructions
Features
M8 x 1.25 class 5H Internal thread (non locking)
M12 x 1.25 class 4H External Thread
Hole Preparation Tap Drill size 10.80mm
M10 x 1.25 class 6H Thread Tap size, Min 13.50 deep
Material
Insert -303CRES (passivated)
Kees-302CRES
Quick quote
Need a quote fast?
Enter your requirements and get a quote back in minutes...
| Company Name | |
| Part Number | KNM8x1.25 |
| Minimum order quantity | 10 |
| Your order quantity | |
| Tool Required | Y/N |
| Send |
Installation Tools
Metric Installation Tools for Light Duty KeensertsĀ® available in thread sizes M3 - M12
CAD Models
CAD Models are available upon request
