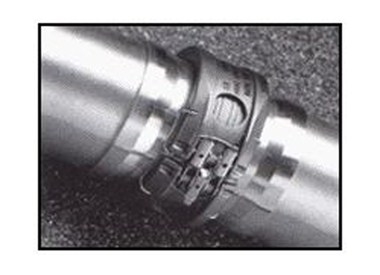

LC525 Series Flexible Coupling


LC525 Series

High Strength: Designed for ECS systems with 255 PSIG operating pressure and temperature rating of 450Ā°F

Locks Automatically: Clam-shell closure locks autoocks Automaticallymatically when two halves are snapped together and cannot disengage accidentally since all three latch pawls must be lifted simultaneously to disengage the latch.

Quick Disconnect: Quick disconnect action of the latch simplifies and facilitates assembly and removal by one hand.

Easily Inspected: Visual inspection from a distance provides positive indication that the closure is fully engaged and securely locked.

Flexible: Axial adjustment is 1/4" nominal; angular misalignment is Ā±4Ā° for full coupling.

Lightning Protection: Protection is provided to at least 1500 amperes when tested in accordance with MIL-STD-1757 test method T03 using current component B waveshape.

Self Bonding: Electrical bonding to class "S" of MIL-B-5087B is automatically provided when the coupling is assembled.
