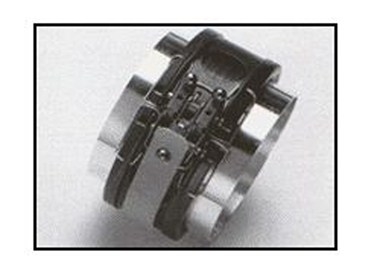

LC501 Series Flexible Coupling
LC501 Series
High Temperature: Designed for high temperature environmental control and engine bleed air applications. Couplings of CRES material using high temperature seals are suitable for 650Ā°F operation.
Locks Automatically: Clam-shell closure locks automatically when two halves are snapped together and cannot disengage accidentally since all three latch pawls must be lifted simultaneously to disengage the latch.
Quick Disconnect: Quick disconnect action of the latch simplifies and facilitates assembly and removal by one hand.
Easily Inspected: Visual inspection from a distance provides positive indication that the closure is fully engaged and securely locked.
Flexible: Axial adjustment is 1/4" nominal; angular misalignment is Ā±4Ā° for full coupling.
Lightning Protection: Protection is provided to at least 1500 amperes when tested in accordance with MIL-STD-1757 test method T03 using current component B waveshape.
Self Bonding: Electrical bonding to class "S" of MIL-B-5087B is automatically provided when the coupling is assembled.
