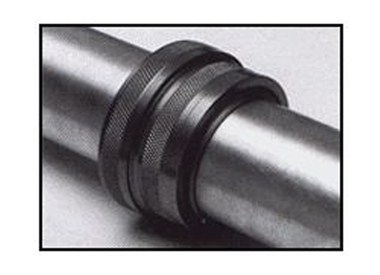

12J70 Series Flexible Coupling
12J70 Series
Self-Locking: Threaded closure locks automatically when nut detent mechanism engages the detents along the face of the body. Assembly and disassembly are performed by hand without tools.
Self Bonding ("E" suffix version): Electrical bonding to class "S" of MIL-S-5087B is automatically provided when the coupling is assembled.
Load Retention Safeguard: In the unlikely event of failure of the split pressure load retainer the load would be picked up and retained by the nut and coupler body shoulders.
Flexible: The coupling will provide a minimum Ā¼" axial adjustment and a maximum of Ā±4Ā° angular misalignment.
Coupling Flanges: Coupling flanges are mechanically attached (swaged or welded) to tube ends. Information about tooling and installation procedure is available from Hydraflow upon request.
