bigHeadĀ®
Clarendon Specialty Fasteners are an approved distributor of bigHeadĀ® fasteners.
bigHeadĀ® embedded and surface bonding fasteners are ideally used to create a secure fixing point on a component.
There are two ranges available; the core range consists of male or female fixings that are available with small, medium and large Heads,
in materials carbon steel or 316 stainless steel and makes choosing your fastener simple.
The extended range offers various other styles of fixings, if the core range is not suitable.
What are bigHeadsĀ®?
Embedded and surface bonding fasteners.
bigHeadĀ® fasteners offer a fixing like a threaded collar, stud, nut or pin is welded to a perforated head and are ideal for creating a secure fixing point on a component.
Its unique design enables a plastic or composite component to be fastened securely with no holes, no punching or drilling. The bigHeadĀ® can be installed after the manufacture of the parent component, āpost-processā, or during the manufacture, āco-processā.
The fixing point enables the component to be efficiently fastened within an assembly or combined with secondary fastening elements.
Contact us to find out more by clicking the button below:

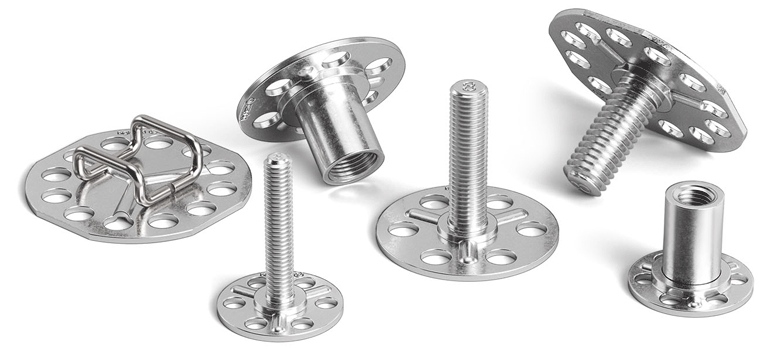

Core Range
Key Benefits
- Create secure fastening points with no drilling, punching, clamping or riveting
- Reliably join mixed materials and thicknesses
- Single-sided access
- No witness on the āAā surface
- Flexible installation and assembly options
- Installation, assembly and performance guidelines
Male bigHeads

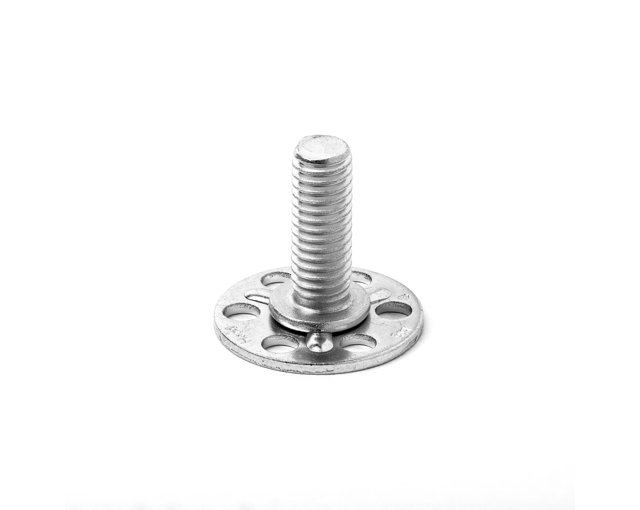

M1 Series - Small
Fixing
Male Threaded Stud Carbon Steel or 316 Stainless Steel
Head
Small - B20 Round Head, Ć 20mm
Materials
Carbon Steel BZP or 316 Stainless Steel

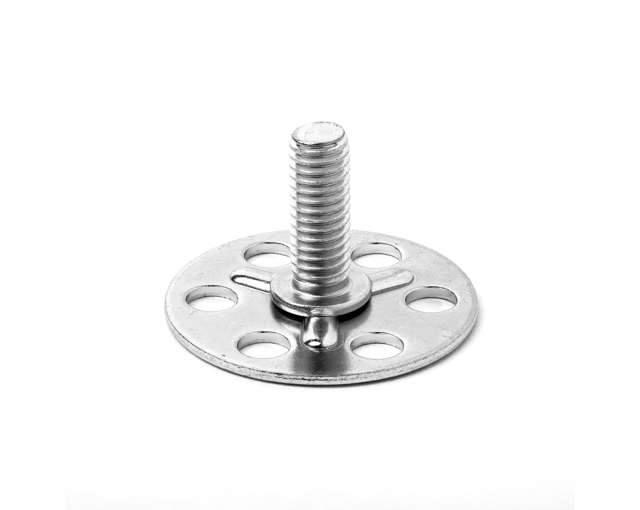

M1 Series - Medium
Fixing
Male Threaded Stud Carbon Steel or 316 Stainless Steel
Head
Medium - B30 Round Head, Ć 30mm
Materials
Carbon Steel BZP or 316 Stainless Steel

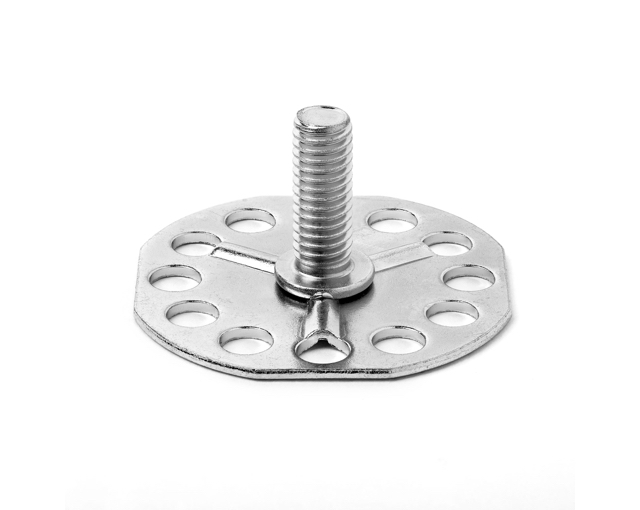

M1 Series - Large
Fixing
Male Threaded Stud Carbon Steel or 316 Stainless Steel
Head
Large - B38A Rounded Corner Head, Ć 38mm
Materials
Carbon Steel BZP or 316 Stainless Steel
Female bigHeads

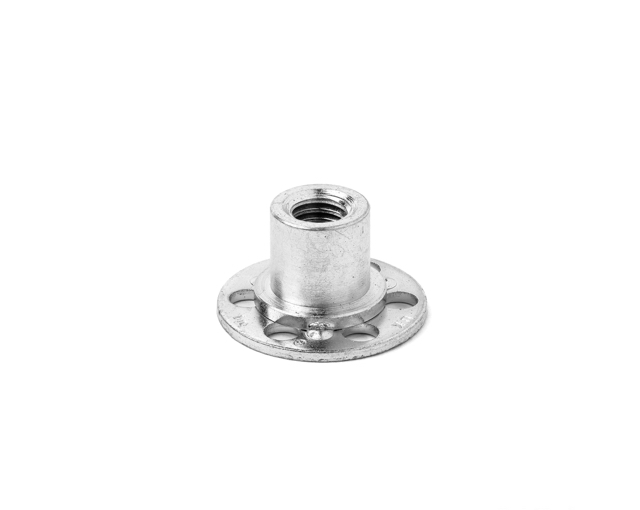

F2 Series - Small
Fixing
Female Threaded Collar Carbon Steel or 316 Stainless Steel
Head
Small - B20 Round Head, Ć 20mm
Materials
Carbon Steel BZP or 316 Stainless Steel

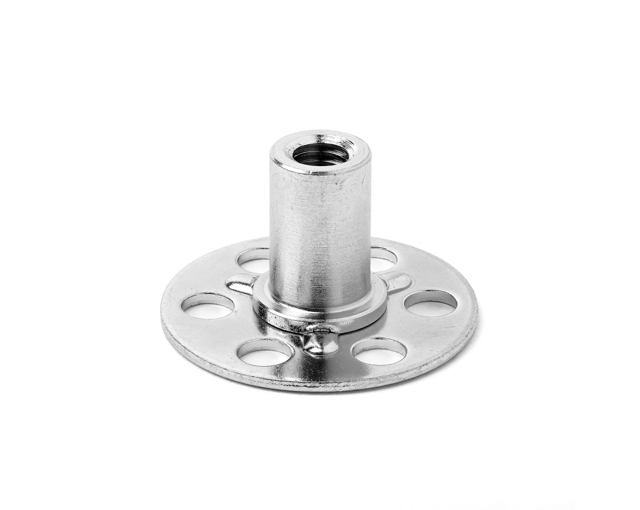

F2 Series - Medium
Fixing
Female Threaded Collar Carbon Steel or 316 Stainless Steel
Head
Medium - B30 Round Head, Ć 30mm
Materials
Carbon Steel BZP or 316 Stainless Steel

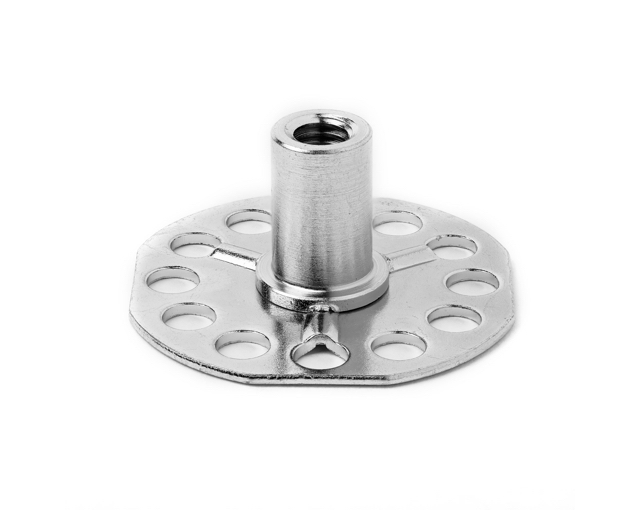

F2 Series - Large
Fixing
Female Threaded Collar Carbon Steel or 316 Stainless Steel
Head
Large - B38A Rounded Corner Head, Ć 38mm
Materials
Carbon Steel BZP or 316 Stainless Steel

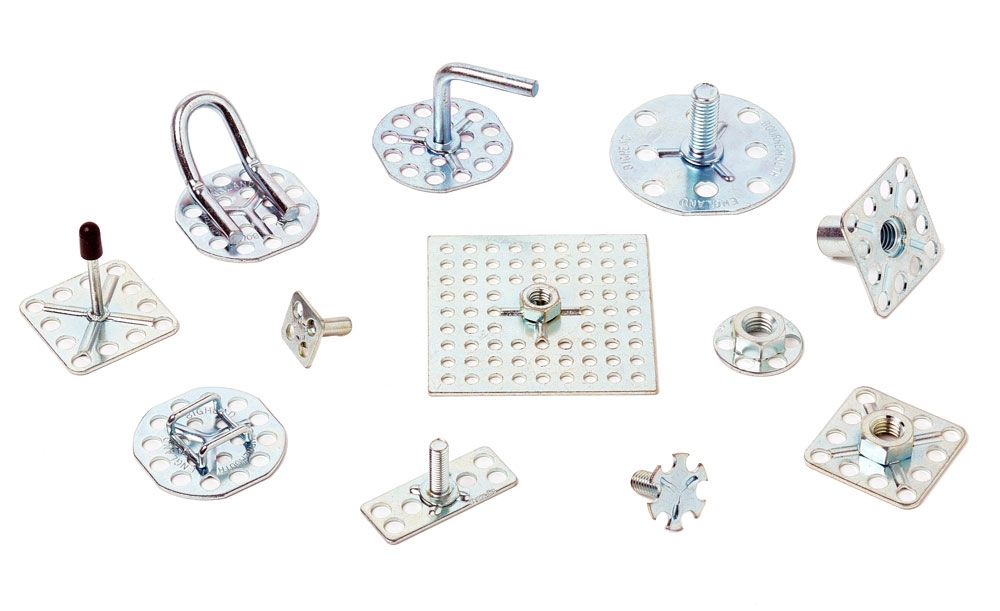

Extended Range
The extended range offers fixings and heads to meet your design needs if the Core Range doesn't suit your application.
Core Range Downloads:
Male Threaded Stud
Female Threaded Collar
(sighted or blind)
Female Threaded Nut
(sighted or blind)
3mm Diameter Nail
4.75mm Diameter Plain Pin
45 Degree 12.25mm Loop
90 Degree Loop
90 Degree Hook
Cable Tyrap
45 Degree 19mm Loop
