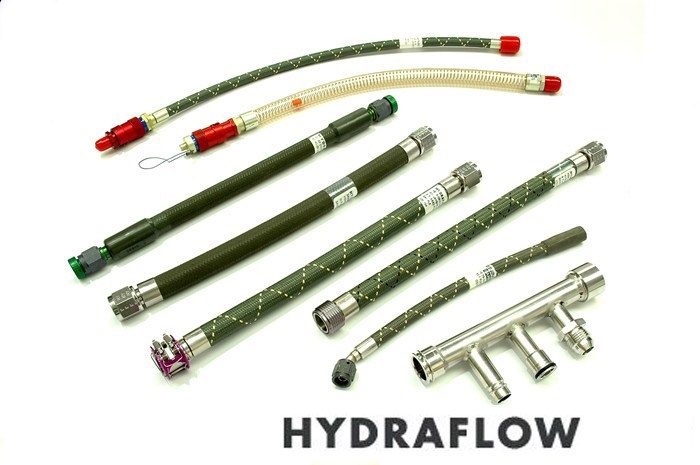

Hydraflow® Hoses
Hydraflow® are the leading manufacturer in Hose production for Aerospace and Defence applications.
Their range of hoses include; Air Data Hoses, Breathing Oxygen Hoses,Cooling Hoses, Potable Water Hoses and Waste Drain & Vent Hoses.
Hydraflow® pioneered these extremely light weight, flexible smooth bore silicone hose assembly series for aerospace applications. The first assemblies of their kind, capable of multiple freeze cycles without bursting or loss of fitting connections.

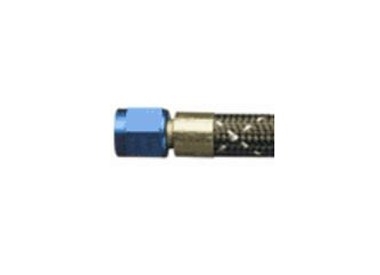

HS36 Series
Product Details
Same inner tubing with different outside braids for different applications.
The brown nylon braid of the HS36 is most common on pitot-static applications.
The green Nomex ® can also be used for these applications as well as oxygen applications.
The black nylon is common on oxygen applications
Click on link below...
Features
- Meets Flammability Resistance requirements of FAR 25.853 (B-2)
- Flexible
- Capable of tight bend radius without collapsing
- Resistance to Oil, water alkalis, most solvents and acids
- Custom Designed & Manufactured for each application
- Self-Extinguishing
- Individual Testing for each hose assembly
Applications
- Breathing Oxygen
- Air Data/Pitot-Static Applications

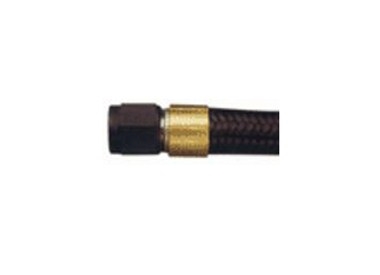

HS37 Series
Product Details
Same inner tubing with different outside braids for different applications.
The brown nylon braid of the HS36 is most common on pitot-static applications.
The green Nomex ® can also be used for these applications as well as oxygen applications.
The black nylon is common on oxygen applications.
Click on link below...
Features
- Meets Flammability Resistance requirements of FAR 25.853 (B-2)
- Flexible
- Capable of tight bend radius without collapsing
- Resistance to Oil, water alkalis, most solvents and acids
- Custom Designed & Manufactured for each application
- Self-Extinguishing
- Individual Testing for each hose assembly
Applications
- Breathing Oxygen
- Air Data/Pitot-Static Applications

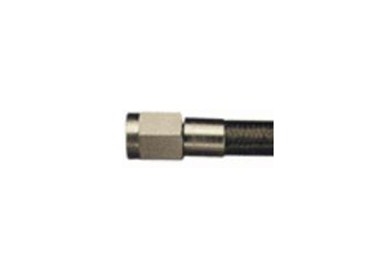

HS38 Series
Product Details
Same inner tubing with different outside braids for different applications.
The brown nylon braid of the HS36 is most common on pitot-static applications.
The green Nomex ® can also be used for these applications as well as oxygen applications.
The black nylon is common on oxygen applications.
Click on link below...
Features
- Meets Flammability Resistance requirements of FAR 25.853 (B-2)
- Flexible
- Capable of tight bend radius without collapsing
- Resistance to Oil, water alkalis, most solvents and acids
- Custom Designed & Manufactured for each application
- Self-Extinguishing
- Individual Testing for each hose assembly
Applications
- Breathing Oxygen
- Air Data/Pitot-Static Applications

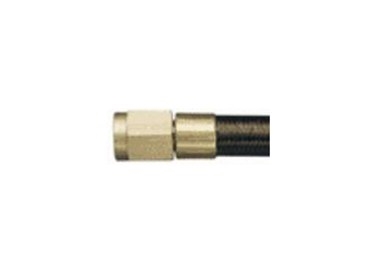

HS41 Series
Product Details
Hydraflow® pioneered these extremely light weight, flexible smooth bore silicone hose assembly series for aerospace applications.
The first assemblies of their kind, capable of multiple freeze cycles without bursting or loss of fitting connections.
Nothing better for drain applications.
Used extensively in vacuum waste systems without fear of collapse.
Click on link below...
Features
- Meets Flammability Resistance requirements of FAR 25.853 (B-2)
- Flexible
- Capable of tight bend radius without collapsing
- FDA Approved
- Custom Designed & Manufactured for each application
- Self-Extinguishing
- Withstands Repeated Freezing Cycles
- Individual Testing for each hose assembly
Applications
- Waste Drain
- Vent Hose

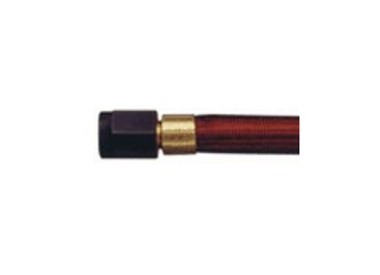

HS45 Series
Product Details
Hydraflow pioneered these extremely light weight, flexible smooth bore silicone hose assembly series for aerospace applications.
The first assemblies of their kind, capable of multiple freeze cycles without bursting or loss of fitting connections.
Nothing better for drain applications.
Used extensively in vacuum waste systems without fear of collapse.
Click on link below...
Features
- Meets Flammability Resistance requirements of FAR 25.853 (B-2)
- Flexible
- Capable of tight bend radius without collapsing
- FDA Approved
- Custom Designed & Manufactured for each application
- Self-Extinguishing
- Withstands Repeated Freezing Cycles
- Individual Testing for each hose assembly
Applications
- Waste Drain
- Vent Hose

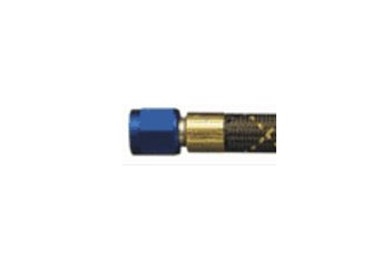

HS57 Series
Product Details
This series hose was developed to meet demanding military breathing oxygen applications. Smooth bore inside with sturdy anti-kink spring built into the wall of the hose, not obstructing flow.
With specially molded outside elastomers, this series is used for aircrew breathing applications where chemical threats exist. Fully tested in live agent environment, this is the only chemical/biological protected non-life limited hose material available in the industry today. Communications cable and connectors are made integral for most military applications.
With or without the special outside cover, this series is used extensively in liquid electronic cooling applications because of the ability to withstand bending and crushing loads without kinking or collapsing. The hose can literally be tied in a knot without effecting its flow capabilities.
Click on link below...
- Qualified to MIL-H-81581
- Flexible
- Extremely tight bend without kinking
- Extreme torsional flexibility
- Chemical, Biological & Radiological hardening available
- Smooth Bore for better flow characteristics
- Custom Designed & Manufactured for each application
- Improved EMI Protected Communication cables and connectors available
- Individual Testing for each hose assembly
Applications
- Breathing Oxygen
- Liquid Cooling

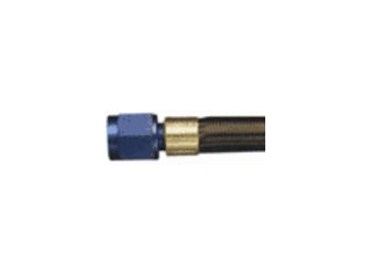

HS79 Series
Product Details
This series hose was developed to meet demanding military breathing oxygen applications. Smooth bore inside with sturdy anti-kink spring built into the wall of the hose, not obstructing flow.
With specially molded outside elastomers, this series is used for aircrew breathing applications where chemical threats exist. Fully tested in live agent environment, this is the only chemical/biological protected non-life limited hose material available in the industry today. Communications cable and connectors are made integral for most military applications.
With or without the special outside cover, this series is used extensively in liquid electronic cooling applications because of the ability to withstand bending and crushing loads without kinking or collapsing. The hose can literally be tied in a knot without effecting its flow capabilities.
Click on link below...
Features
- Qualified to SAE Standard AS4468 aircraft potable water
- Meets Vertical Burn Requirement FAR 25.853(b)
- Flexible
- First smooth bore Teflon ® as flexible as rubber
- Clam-Shell Couplings Available
- Custom Designed & Manufactured for each application
- All Non-Aging Materials Used
- Individual Testing for each hose assembly
Applications
- Potable Water (Available with heating elements)
- Breathing Oxygen
- Liquid Cooling
- Chemical Processing
- Food & Beverage Processing
- Pitot-Static with Anti-Kink Spring Added

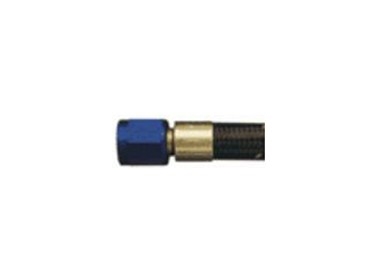

HS80 Series
Product Details
This hose is fully qualified to SAE standard AS4468 (potable water).
Flexibility is obtained by using an extremely dense and tough lining permanently HYDRABONDED to non-life limited materials combined and processed to exacting Hydraflow standards.
Click on link below...
Features
- Qualified to SAE Standard AS4468 aircraft potable water
- Meets Vertical Burn Requirement FAR 25.853(b)
- Flexible
- First smooth bore Teflon ® as flexible as rubber
- Clam-Shell Couplings Available
- Custom Designed & Manufactured for each application
- All Non-Aging Materials Used
- Individual Testing for each hose assembly
Applications
- Potable Water (Available with heating elements)
- Breathing Oxygen
- Liquid Cooling
- Chemical Processing
- Food & Beverage Processing
- Pitot-Static with Anti-Kink Spring Added
HS96 Series
Product Details
There is no other convoluted on the market the way Hydraflow makes the HS96. This special method of construction allows a far larger fitting orifice and far less turbulence than laminated assemblies. Flexibility is also much improved from the standard convoluted designs. The HS96 is preferred for liquid cooled moving optical or array heads because of its light weight and its extreme flexibility. This flexibility minimizes transfer of bending loads to gimbaled platforms.
This hose is the choice for very tough applications because it is constructed of all non-life limited materials that are also impervious to most media and environments.
Non-conductive versions are available as series HS95.
Click on link below..
Features
- Flexible
- Capable of tight bend radius without collapsing
- Inert to most fluids
- Custom Designed & Manufactured for each application
- Self-Extinguishing
- Lightweight
- Conductive liner eliminates potential of failure due to static discharge with some fluids
- Applications:
Applications
- Radar Applications
- Avionics Cooling
- High Power Electronic Cooling
